SELECTION OF SPECIFICATIONS

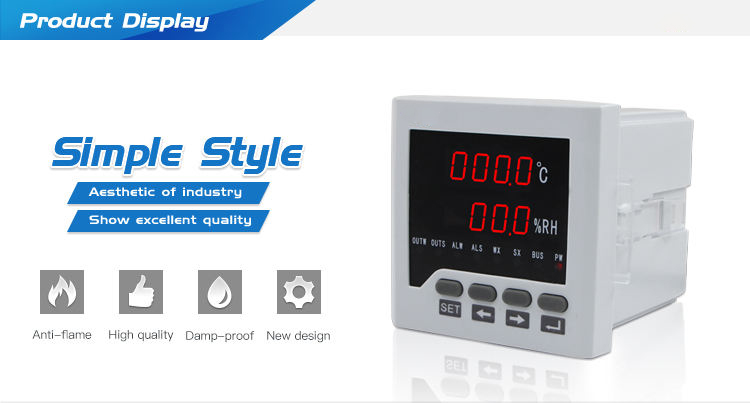

1. Temperature and humidity controller uses dedicated microprocessor, SMTmounting technology and high precision temperature and humidity sensors.Compact, reliable performance,
high precision measurement and control thetemperature and humidity, strong antijamming ability, controls are simple. Can bewidely used in industry, agriculture, medicine, chemical industry, warehouse, etcwhere temperature and humidity measurement and control are needed.
2.The controller with temperature, temperature alarm, heater disconnection alarmfunction, communication function, widely used in automation and controlapplications.
Note: the alarm and disconnection alarm output contact for the same.
Main technical index
Supply voltage (default power switch power supply)
AC: switching power supply 85V~265V,50~60Hz
AC: transformer 110V, 220V, 380V,50~60Hz
DC:24V,36V,48V,110V,220V
Measurement accuracy
Temperature: + 0.5 c
Humidity: +5%RH
Resolution: 14 Bit
Sampling time: 0.5 Sec
Range of measurement and control
Temperature:-40~100℃
Humidity: 0~100%RH
Display mode
Measured value, set the value of digital display
Output status, alarm status LED light indication
Control mode
Two-position control (hysteresis can be set freely)
Control output
1. Relay output: contact capacity 250VAC 3A (resistive load)
2. Voltage pulse output: 0~12V (for solid state relay SSR)
Output contact
Durability: 1X10
Mechanical durability: 1X10
Installation methods
Panel mounting, flush mounting.
Other
1. Insulation resistance: >50M ω (500VDC)
2. Dielectric strength: 1500VAC/1 minutes
3. Power consumption: <10VA
4. Environment: 0~50℃, 60~85%RH, non-corrosive gases
5. Weight: about 0.5Kg (power switch power supply)
6. Disconnection alarm function
